KF715/UVIR2 Spot UV/IR Flame Detector Technical Specifications

1. Product Overview

The KF715/UVIR2 Spot UV/IR Flame Detector (hereinafter referred to as the KF715/UVIR2 Flame Detector) is a compact, high-performance flame detector designed based on our company's previous flame detector models, market demands, and customer feedback. The KF715/UVIR2 Flame Detector utilizes a new narrowband current-type pyroelectric infrared sensor and the R2868 "solar-blind" UV photoelectric sensor from Hamamatsu Photonics (Japan). Combined with a built-in 32-bit microprocessor and a patented (CN202010297486.5) composite signal processing algorithm, it can quickly identify flame signals and accurately distinguish real flames from interference sources, significantly reducing the impact of environmental factors on the detector. While meeting performance requirements for explosion-proof, protection, and corrosion resistance, the KF715/UVIR2 Flame Detector features a smaller size, lighter weight, and more convenient installation.

2. Product Illustration

3. Features

1. Built-in high-speed, low-power, high-performance 32-bit high-precision data processing chip;

2. Utilizes a patented (CN201420098276.3) narrowband current-type pyroelectric infrared sensor and fast-response UV optical sensor for composite detection;

3. Capable of detecting small fires at an earlier stage;

4. Detection distance of 40 meters (0.33m x 0.33m x 0.05m n-heptane fire);

5. Comprehensive algorithms that perfectly combine flame detection and false alarm immunity;

6. Suitable for multiple types of fuel;

7. Suitable for heavy industrial applications;

4. Design Standards

GB 15631-2008 Special Fire Detectors, GB 12791-2006 Spot UV Flame Detectors, GB 3836 Explosive Atmospheres.

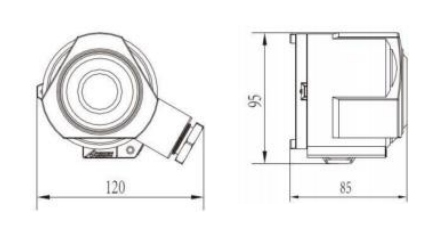

5. Dimensions

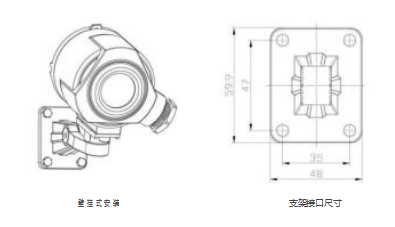

6. Installation Diagram
